Product Introduction
ILLUMEX UV-T1 | Designed for Compact Packaging Lines
A compact inline UV laser coding option for packaging lines with limited space. Start with actual packaging samples and production-line conditions.
On packaging lines, production dates, expiry dates and batch codes often occupy only a small area of a pack. Finding suitable installation space for the coding equipment, however, is not always straightforward.
Clearances inside packaging machines, space above conveyors, labeling station layouts and the positions of existing equipment can all influence equipment selection and installation.
The ILLUMEX UV-T1 UV laser coding machine focuses on inline packaging applications. Its compact, rectangular housing offers a UV laser coding option for packaging lines with limited space.
ILLUMEX UV-T1 product overview.
A Compact Design Starts with the Installation Position
For equipment integration and upgrades to existing lines, marking quality matters. Whether the equipment can be installed appropriately at the actual production station is equally important to consider early on.
The UV-T1 has a metal enclosure and a regular rectangular shape, with the lens and mounting features on one side and connections at the end. This layout helps frame the assessment of:
- Marking direction;
- Mounting bracket design;
- The path of the product through the marking position;
- Cable routing;
- Space for future maintenance.
Whether the application involves a packaging machine, filling line, conveyor or labeling station, the installation arrangement must take account of the available space, packaging travel direction and equipment configuration. Space must also be allowed for guarding, fume extraction and routine maintenance.
For inline coding equipment, the ability to produce a mark is only the first step. Whether the equipment can be securely installed and integrated into a real production line matters just as much.

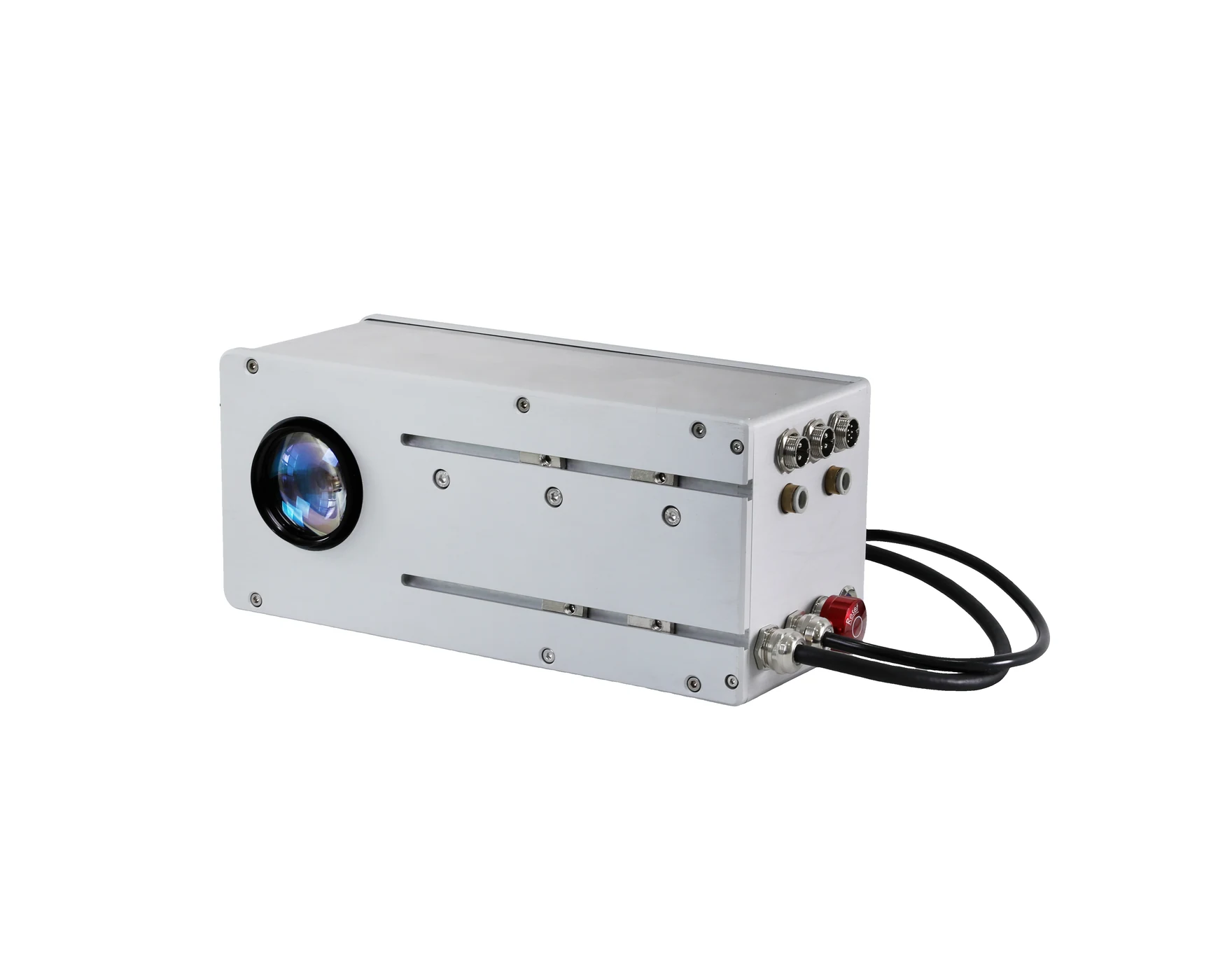

UV-T1 lens and mounting features.
UV Laser Is One Option for Packaging Coding
There is more than one way to code packaging on a production line.
Inkjet, laser and other marking methods each have applications for which they are suited.
Unlike ink-based printing, which deposits information on the packaging surface, laser marking acts directly on the material and does not require coding ink.
UV laser can be an option for applications seeking clear, consistent marks while reducing the need to manage ink consumables.
Different packaging materials, however, do not respond to UV laser in the same way.
Even plastics, films, labels or coated materials that look similar can produce noticeably different marking results.
Suitability for UV laser coding therefore cannot be determined from the material name alone.
Testing actual packaging samples remains an important part of equipment selection.
Packaging Information Serves Specific Production Needs
In food, beverage, pharmaceutical and personal care packaging, common coding content includes:
- Production dates;
- Expiry dates;
- Batch numbers;
- Product identifiers;
- QR Code;
- Data Matrix;
- Other variable information.
When a business also requires a unique code for each item, product identification or traceability, additional requirements arise for code clarity, readability and data connectivity.
Whatever information needs to be marked, a few basic conditions should be clear before selecting equipment:
What material will be marked?
What information needs to be marked?
At what production rate must coding take place?
How much installation space is available at the station?
In other words:
Material × Content × Speed × Installation Space
Together, these four factors provide a more practical picture of production requirements than any single equipment specification.
Discussions about UV-T1 applications begin with these questions.
Supported code formats, material suitability, marking results and inline configurations are subject to sample testing and confirmation for the specific project.
From Packaging Samples to the Actual Production Station
A successful laboratory sample does not mean that the same result will automatically be achieved after installation on a production line.
A suitable coding solution needs to consider sample results and actual production-line conditions together.
The initial review typically needs to establish:
- The packaging material;
- The location of the marking area;
- The required mark size;
- Whether the information is fixed or variable;
- The production-line speed;
- Whether products move continuously or intermittently;
- How steadily products pass through the marking position;
- The installation space available on site.
The clearer this information is, the more accurately sample testing and integration can be assessed.
If the project also involves code readers, vision inspection, unique item coding or a traceability system, the required data exchange, trigger signals and upstream and downstream equipment interfaces should be defined early.
These functions should be included when the actual production process requires them, rather than adding complexity for its own sake.

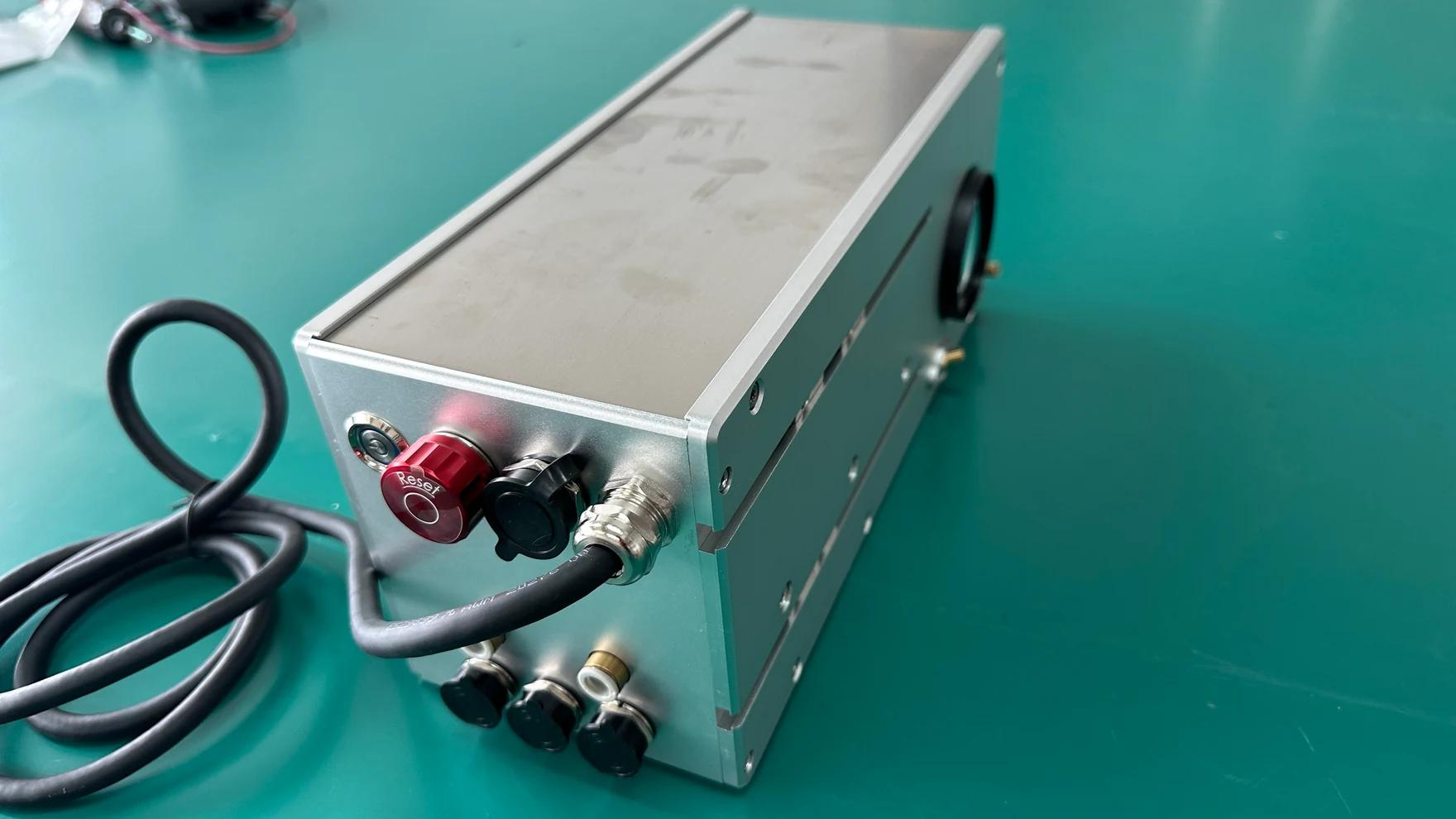

UV-T1 end panel and external connections, photographed on the workbench.
Inline Coding Ultimately Addresses a Production Need
On a packaging line, a coding machine does not operate in isolation.
It needs to work together with:
Packaging materials,
Product movement,
Production timing,
Installation space,
And the information being marked.
That is why ILLUMEX approaches UV-T1 selection by first understanding the production problem, rather than starting with the question of which machine to buy.
Some applications suit UV laser coding; others may be better served by a different coding method.
Understanding the actual material and site conditions before deciding whether equipment is suitable is usually more useful than comparing specifications alone.
Start with Your Packaging Sample
If you are considering laser coding for an existing packaging line, please share:
- An actual packaging sample;
- A photo of the proposed coding station;
- The information you need to mark;
- An approximate production speed.
ILLUMEX can then discuss sample testing and integration options based on your material and installation conditions.
Start with the actual sample and production station, then determine whether the UV-T1 is suitable for your line.
ILLUMEX UV-T1 | Compact Inline UV Laser Coding
